General Introduction

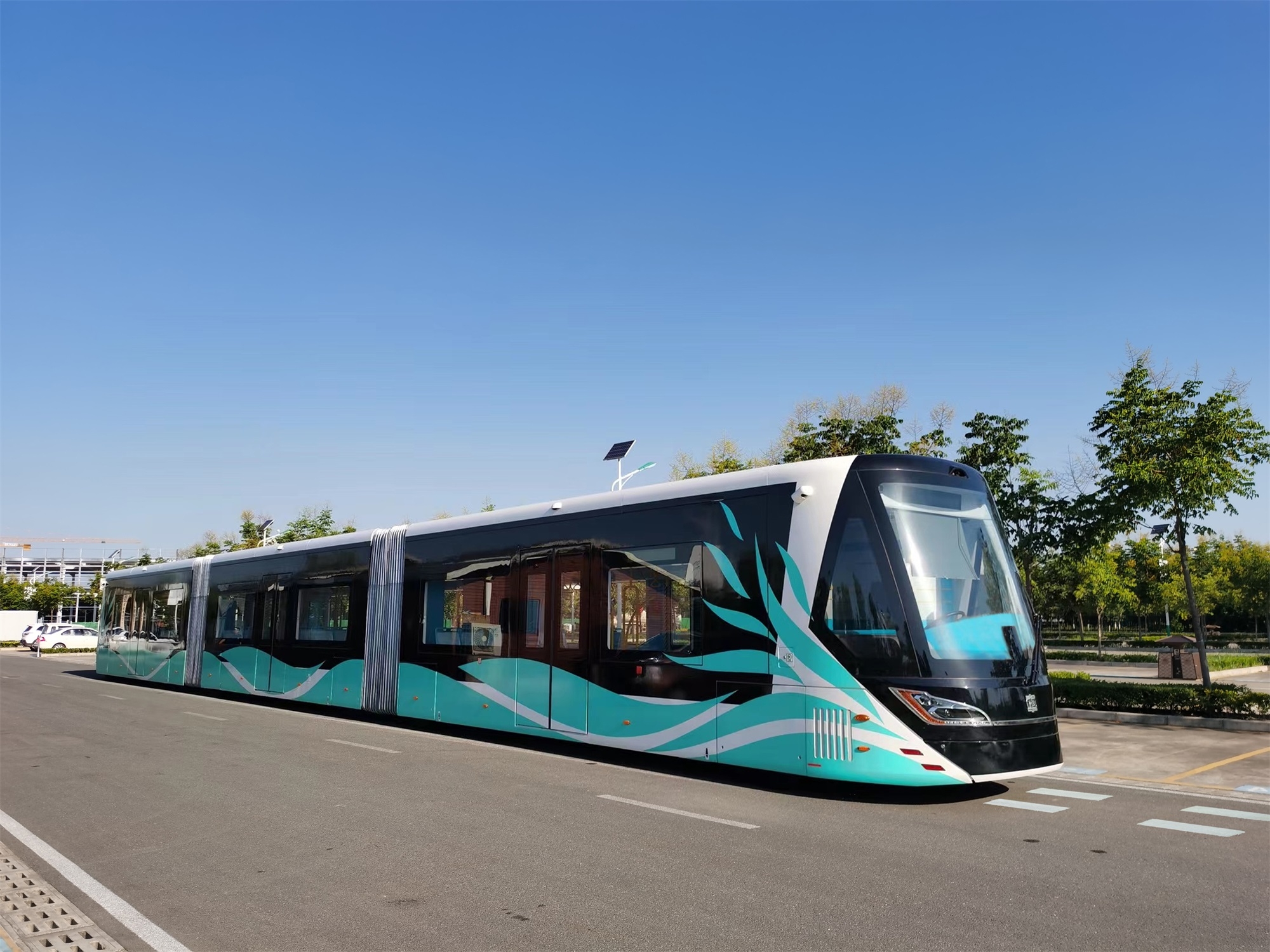

Autonomous-rail Rapid Transit (ART) is a novel type of rail transit system with medium-low transport capacity invented by CRRC Zhuzhou Institute which has been keeping up with market trends and inheriting top-class rail transit technologies. ART is highly fitting the needs of urban public transport with the advantages of small infrastructure investment, short construction period, and flexible scheduling by breaking the application limitation of rail transit.
Vehicle Parameters
| Three-module ART vehicle (basic parameters) | |
| Vehicle Capacity | ≥300 (seats + 8 persons/m2) |
| Vehicle Dimensions | 30800 mm * 2650 mm * 3650 mm |
| Axle Load | ≤9 T |
| Maximum Speed | 100 km/h |
| Maximum Gradient | 13% |
| Minimum Curve Radius | 15m |
Technological innovation and intelligent application

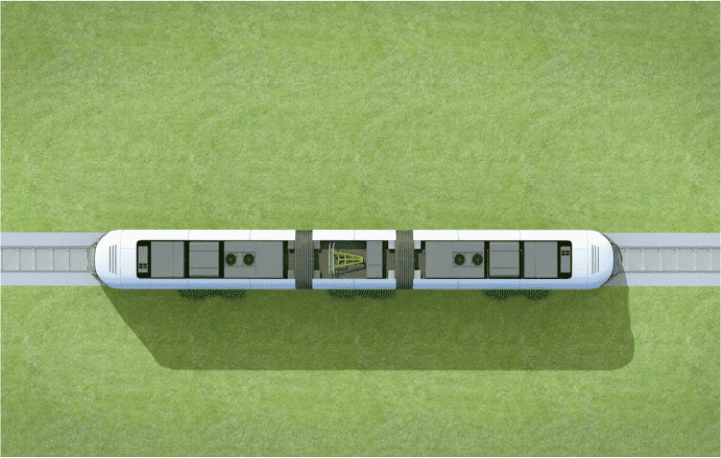

Rubber Wheel + Virtual Track
ART has overcome the virtual track technology of electronic guidance and trajectory following, achieving precise movement of rubber wheel along the virtual track on the road without physical rail constraints.
Replace steel wheel + steel track with rubber wheel + virtual track
Automatic Drive
SAE Level2
Partial Automatic Drive under mixed right-of-way.
SAE Level3
Conditional Automation under independent right-of-way.
SAE Level4
High Automation in particular scenarios.

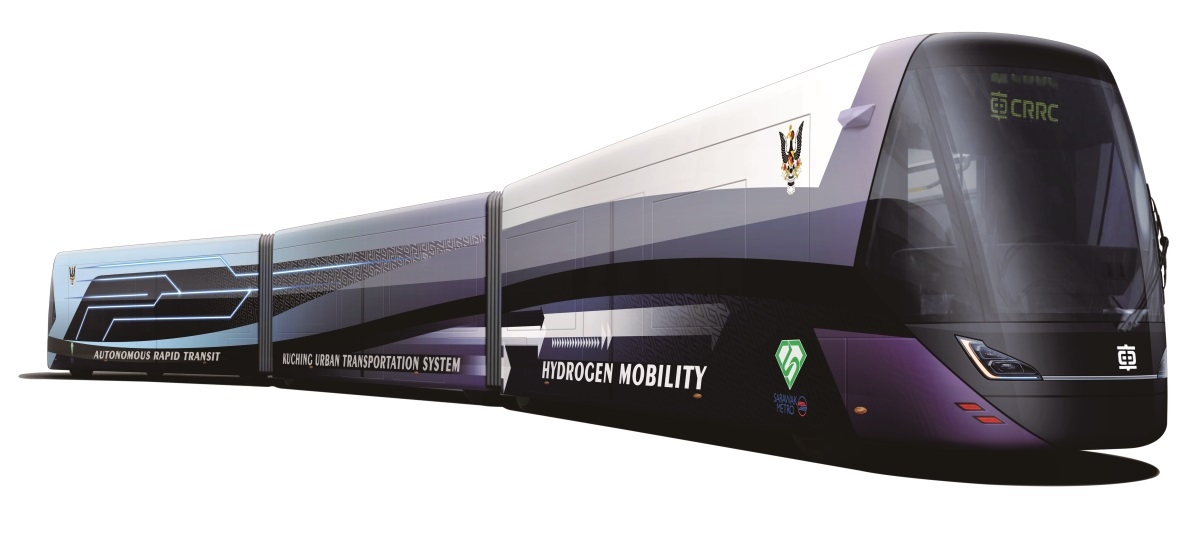

CRRC ART H2
Endurance mileage under full load （storage pressure 70 MPa ）390km
Hydrogen leakage detection function of hydrogen storage system SIL4
CRRC ART H2

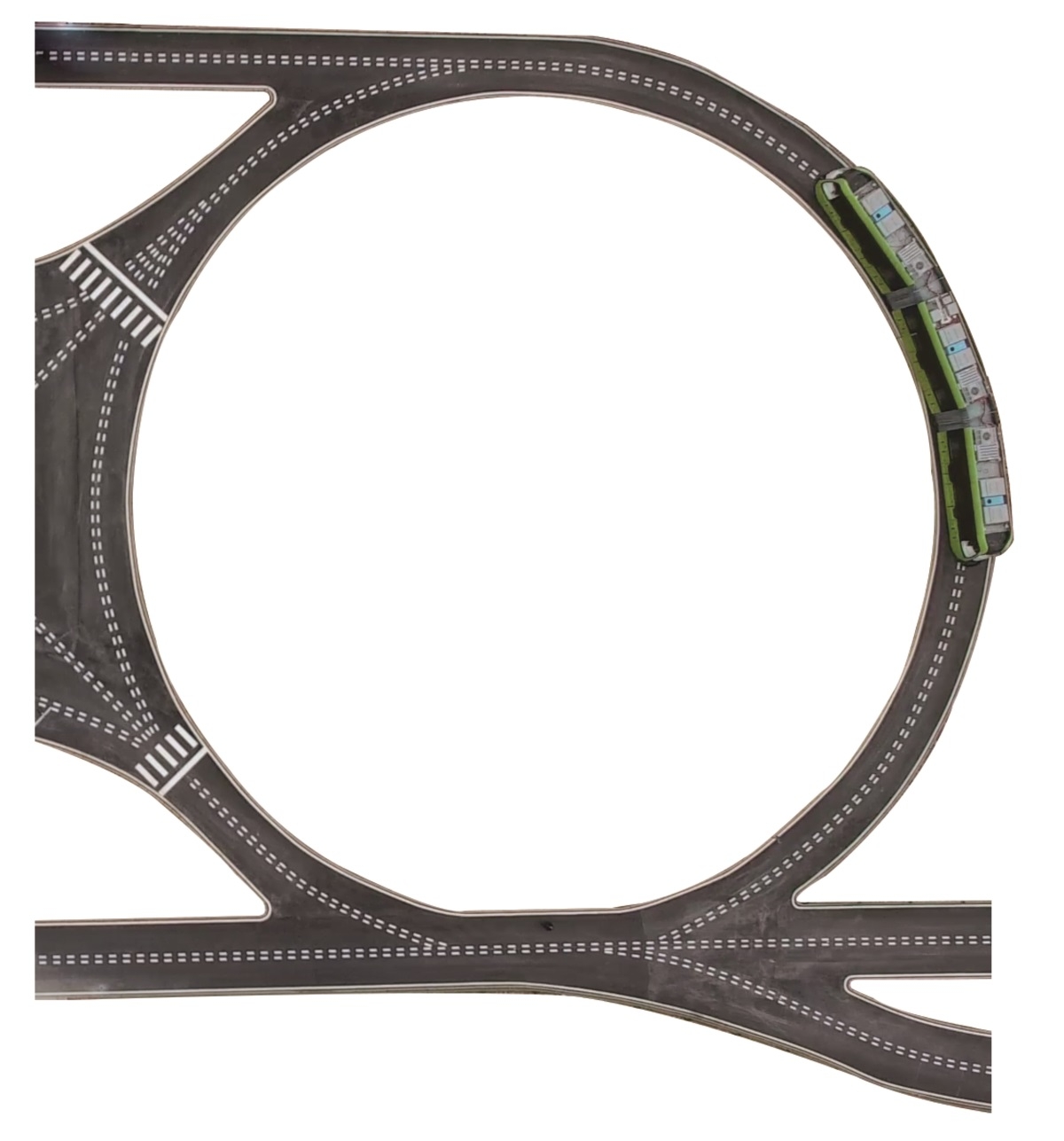

Automatic Tracking
Through automatic tracking control, the vehicle's axles can steadily track the perceived path and operate along it.
The ART fully embodies the concept of environmental protection throughout the design, production, operation, and recycling stages of its life cycle.
Lightweight Design
Service weight 36.4% ↓
Traction energy-saving 20% ↑
Low Carbon and Energy-saving
No construction of steel rails and power supply networks , CO2 emissions 769 tons/km↓ compared with tramcar; Eliminates high-frequency noise stemming from both steel wheel-rail and pantograph-grid contact, significantly reducing interior noise.
Regenerative Braking Energy Recovery Technology
Maximum energy recovery of electric braking 800kW
Energy recovery ratio ≥ 30%
Integrated Operation Platform System
Energy consumption of center equipment 86.4%↓
Zero Carbon Line & Zero Carbon Factory
National LEED certification for ART factory

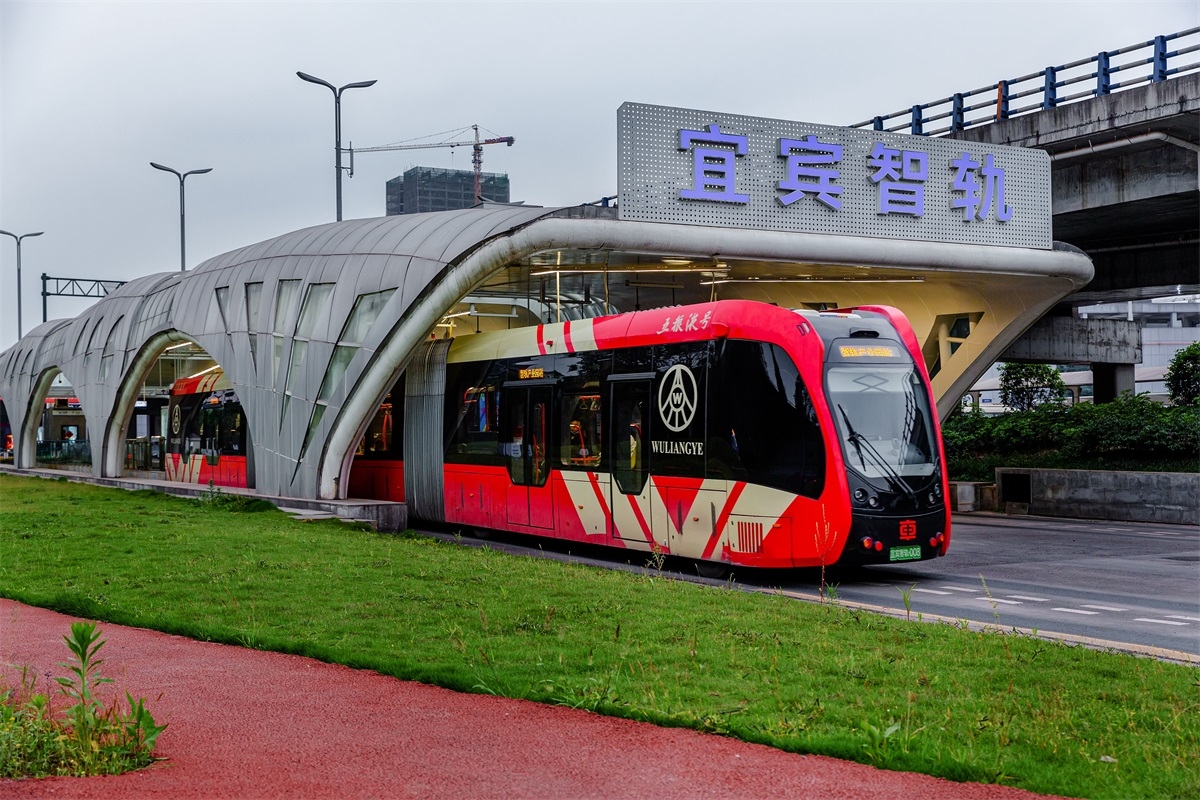

"Zero Carbon Operation Line PAS 2060 Carbon Neutrality Certification" for Yibin ART Line T1.
