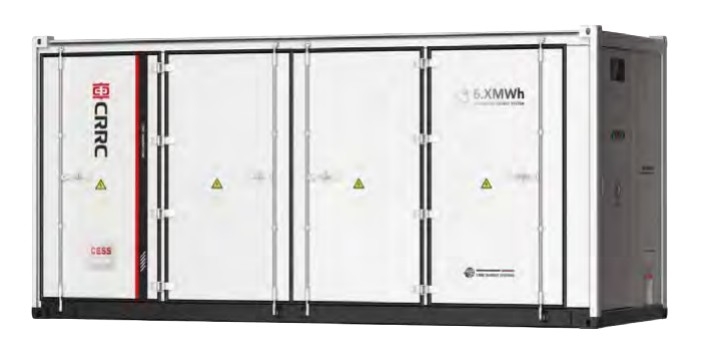

6.X Liquid Cooling Energy Storage System
Definition
The system features large battery cells with high energy density, efficiency, and safety. It integrates batteries, BMS, thermal management, fire protection and environmental control system within a standard 20 or 10-foot container. This system meets application requirements at megawatt-level and above.
PRODUCT
FEATURES
TECHNICAL PARAMETERS
| PRODUCT MODEL | CESS-L3125-EU-0.5C/0.25C CESS-L3450-EU-0.5C |
CESS-L6250-EU-0.5C/0.25C CESS-L6901-EU-0.5C |
|
|---|---|---|---|
| Product Parameters | |||
| Cell type | LFP 3.2V/587Ah/648Ah | LFP 3.2V/587Ah/648Ah | |
| Capacity | 3.125MWh/3.450MWh | 6.250MWh/6.901MWh | |
| DC Voltage Range | 1081.6V~1497.6V | 1081.6V~1497.6V | |
| System Configuration | 416S4P | 416S4P/416S8P | |
| Thermal Management System | Smart liquid cooling/heating for battery system | Smart liquid cooling/heating for battery system | |
| Fire Detection and Alarm | Fire alarm panel, heat and smoke detection, alarm bell and strobe | Fire alarm panel, heat and smoke detection, alarm bell and strobe | |
| Fire Suppression Options | Aerosol-based suppression system. Flooded fire protection systems |
Aerosol-based suppression system. Flooded fire protection systems |
|
| Noise @1m distance | ≤ 75dB(A)/≤ 80dB(A) | ≤ 75dB(A)/≤ 75dB(A) | |
| PACK-Level Fire Protection | /Yes | /Yes | |
| System Parameter | |||
| Dimensions of Battery Compartment | 2991*2438*2896mm | 6058*2438*2896mm | |
| Weight of Battery Compartment | ≤26t/≤28t | ≤48t | |
| Operating temperature range | -30°C~55°C | -30°C~55°C | |
| Relative humidity | 0%~100% | 0%~100% | |
| Ingress protection rating | IP55 | IP55 | |
| Max. altitude | 4000m (>2000m derating) | 4000m (>2000m derating) | |
| Communication Protocol | Modbus TCP、IEC104、IEC61850 | Modbus TCP、IEC104、IEC61850 | |
| Certification | IEC 62619,IEC 63056, IEC 61000 IEC 62477-1,IEC 62933-5-2,UN3536, UN38.3,UL9540A |
IEC 62619,IEC 63056, IEC 61000 IEC 62477-1,IEC 62933-5-2,UN3536, UN38.3,UL9540A |
|
