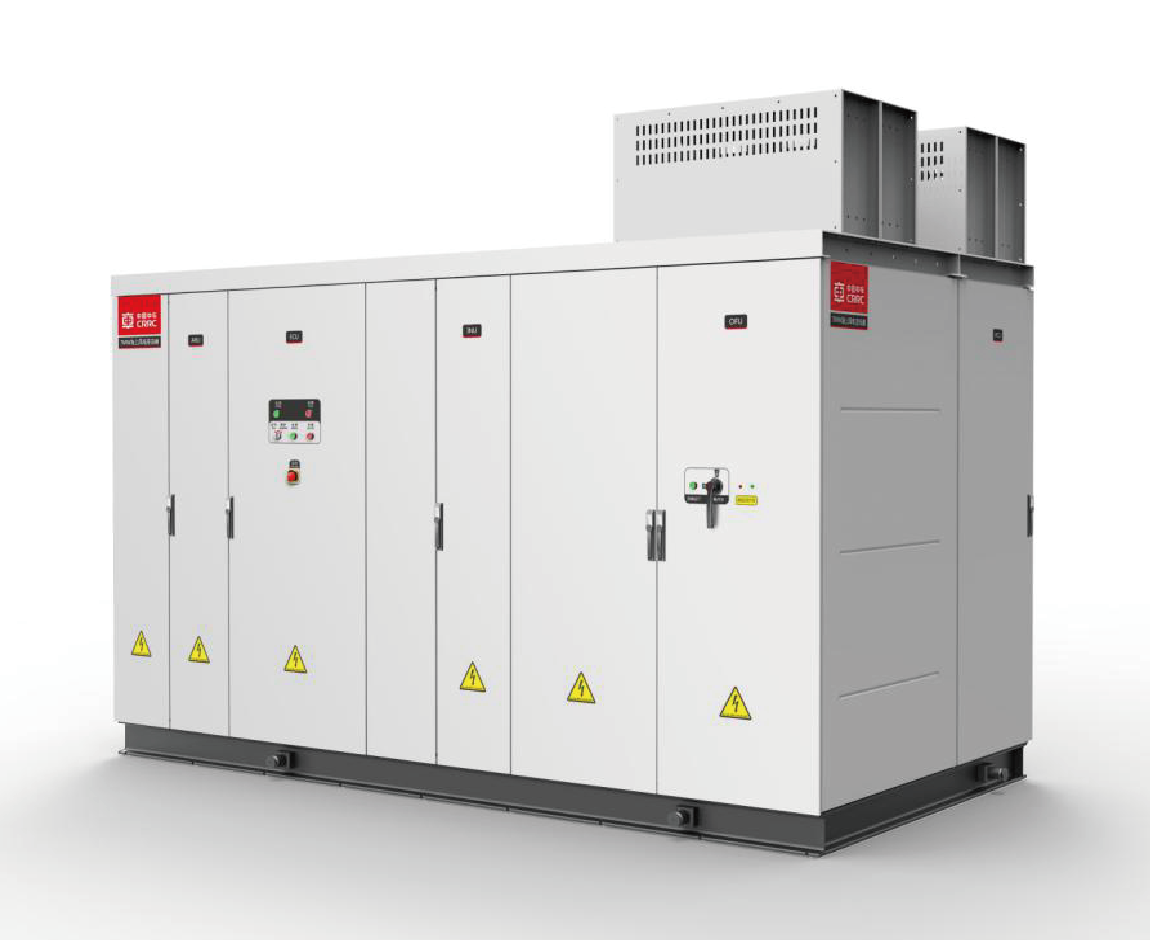

PRODUCT
FEATURES
Efficient
With relative low-voltage, the comprehensive efficiency of the system is 1.5% higher. The fewer cables of medium-voltage converter simplify the construction. All maintenance work can be completed without large tooling.
Friendly
It can comprehensively meet the requirements of high voltage ride through, low voltage ride through, network-side immunity, and reactive power compensation, etc.; lts compact size is easy to arrange and maintain.The 7MW base power can be expanded to 12MW to support ultra-long life cycle scheme.
Reliable
It is the second manufacturer in the world to master the full set of IGCT technology with 9 years of lGCT converter R&D experience and 4 years of accumulated 21 sets of lGCT converter field application experience, and high protection design for offshore environment.
Intelligent
It has expert automatic diagnosis system based on CSR Drive, real-time multi-object control, real-time data monitoring, fault data storage and friendly human-machine interface. lt supports remote intelligent operation and maintenance functions.
TECHNICAL PARAMETERS
| Parameters | Power Level | 7MW | 10MW | 12MW |
| Grid Parameters |
Rated Network Pressure | 3000V | ||
| Grid Frequency | 47Hz~53 Hz | |||
| Grid Current | 1560A | 1950A | 2340A | |
| Converter Parameters |
Grid-side Current | 1560A | 1950A | 2340A |
| Machine-Side Current | 1600A | 2000A | 2400A | |
| Cabinet Size W x L x D(mm) | 3900mm*2000mm *2300mm |
6400mm* 1200mm *2000mm |
as required | |
| Grid Voltage Harmonics (Withstand) | ≤5% | |||
| Grid Voltage Imbalance (Withstand) | ≤8% | |||
| Overall Efficiency | >97.6% | |||
| Low Voltage ride through | Meet the latest national standard E.ON 2006 |
|||
| Noise | <80dB | |||
| Protection Level | IP54 | |||
| Environmental Parameters |
Operating Temperature | - 10C~40 | ||
| Storage Temperature | -20'C~60C | |||
| Altitude | ≤1000m | |||
