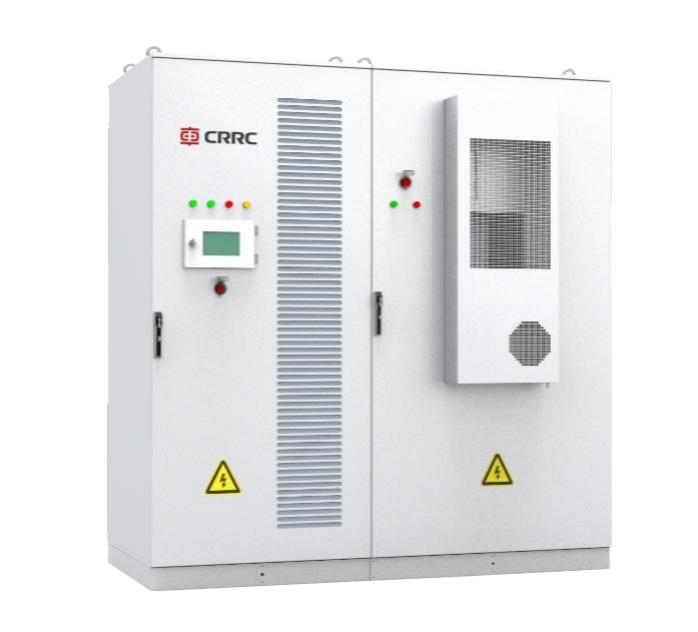

Smart ESS Cabinet-100/215
Definition
The Smart Energy Storage Integrated Cabinet is an integrated energy storage solution widely used in power The Smart Energy Storage Integrated Cabinet is an integrated energy storage solution widely used in power systems, industrial,and commercial applications.This cabinet integrates advanced battery technology,energy management systems,and inteligent controls,achieving efficient energy storage in a compact device.
PRODUCT
FEATURES
TECHNICAL PARAMETERS
| PRODUCT MODEL | CESS-Smart ESS-100/215 |
|---|---|
| DC Parameters | |
| Nominal capacity | 215kWh |
| Rated voltage | DC 768V |
| Voltage rage | DC 600~876V |
| Charge/discharge ratio | 0.5C |
| DOD | 90% |
| Cooling method | Fan cooling |
| PV Input | |
| Max.input power | 120KW |
| Max.input voltage | DC 650V |
| MPPT operating voltage range | DC 100-650V |
| Start-up voltage | DC 100V |
| Max.input cuent | 100A |
| Max.short circuit current | 100A |
| No.of MPPTtrackers | 2 |
| No.of strings per MPPT | 1 |
| AC side (on-grid) | |
| Nominal output power | 100kW |
| AC Max.Power | 110KVA |
| THDi | <3% |
| DC component | <0.5% |
| AC rated voltage | AC380/400V |
| Grid allowed voltage | 320V-460V |
| AC input model | 3P+N+PE |
| Rated frequency | 50Hz/60Hz |
| Adjusted PF range | 1 (leading)~1 (laging) |
| AC side (off-grid) | |
| Nominal output voltage | 380V/400V,3L/N/PE |
| Nominal output frequency | 50Hz/60Hz |
| Nominal output current | 83A |
| Nominal output power | 35.8kW |
| Max.apparent power | 35.8KVA |
| Max.Single-phase apparent power | 12KVA |
| Switching time | <20ms |
| System Parameters | |
| Dimensions(W×DXH) | 2277*1280*2336mm |
| Weight | 3.5t |
| Protection grade | lp54 |
| Anti-corrosion grade | C5 |
| Operating temperature | -30°℃~50℃ |
| Humidity range | 5-95%6(no condensing) |
| Temperature control | Industrial air-conditioning |
| Fire protection | Pack &Cabinet aerosol |
| Alitude | ≤3000m |
| PCS cooling method | Forced air cooling |
| Communication protocol | Modbus /Rs485 |
| Certification | IEC61000,IEC62477,IEC62619,EN62109-1/2,EN50549-1/10,NRS 097-2-1,UN38.3 |
