Main Parameters

1. Power Supply: 10V~30V，15V（Typ.）
2. Frequency range: 0Hz~20kHz
3. Air gap：0.3mm～1.5mm，Nominal air gap: 0.8mm
4. Output signal：Square wave , Rising & Falling time≤10μs
5. Duty cycle: 50%±20%
6. Phase shift: 90°±30°

Key Benefits

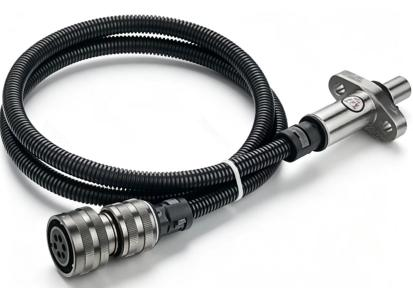

1. Flange mounting,no-contact speed measuring of rotation and free-maintenance
2. Suitable for detection of slow rotation from 0 Hz and high-speed rotation up to 20 kHz
3. Two channels shifted 90° provide the direction of rotation
4. Stainless steel housing suitable for harsh application

Typical Applications

1. Speed measurement in motors
2. Rail vehicle traction system
