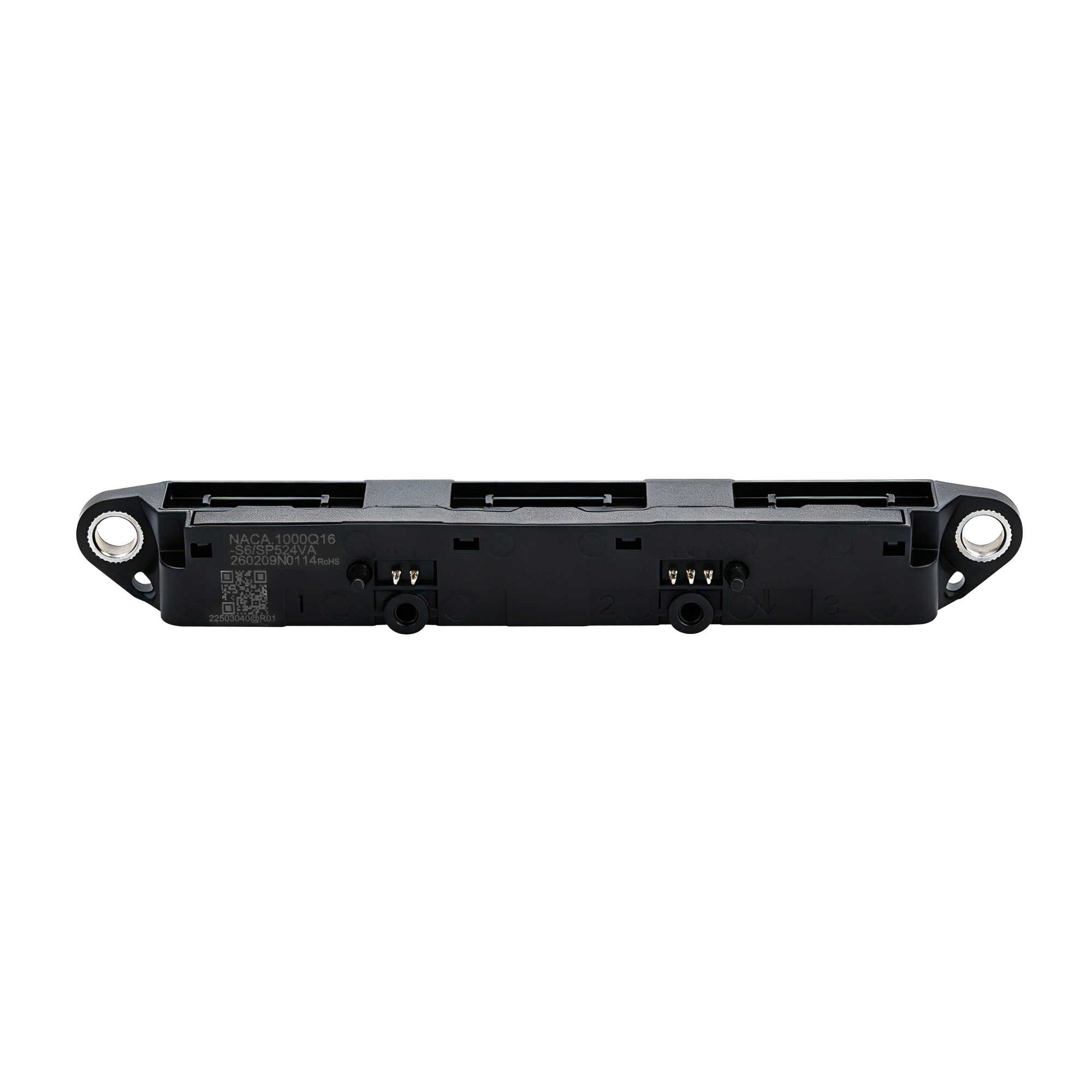

Main Parameters

1. Power Supply: 5 V
2. Rated Current: 600A~1000A
3. Current Measurement Range: ±600A~±1000A
4. Bandwidth: 40 kHz
5. Step‑response Time: 2 μs（Typical）

Key Benefits

1. Open‑loop Hall‑effect technology, galvanic isolation between primary and secondary for high safety & reliability
2. Broad measurement range: DC, AC and pulsed current
3. Voltage output, easy post‑stage sampling circuit design
4. Compact footprint, ideal for cabinet‑mount installation
5. Excellent  insulating  performance

Typical Applications

1. Electrical Power Steering
2. Starter Generators
3. Converters
4. Motor drive application
