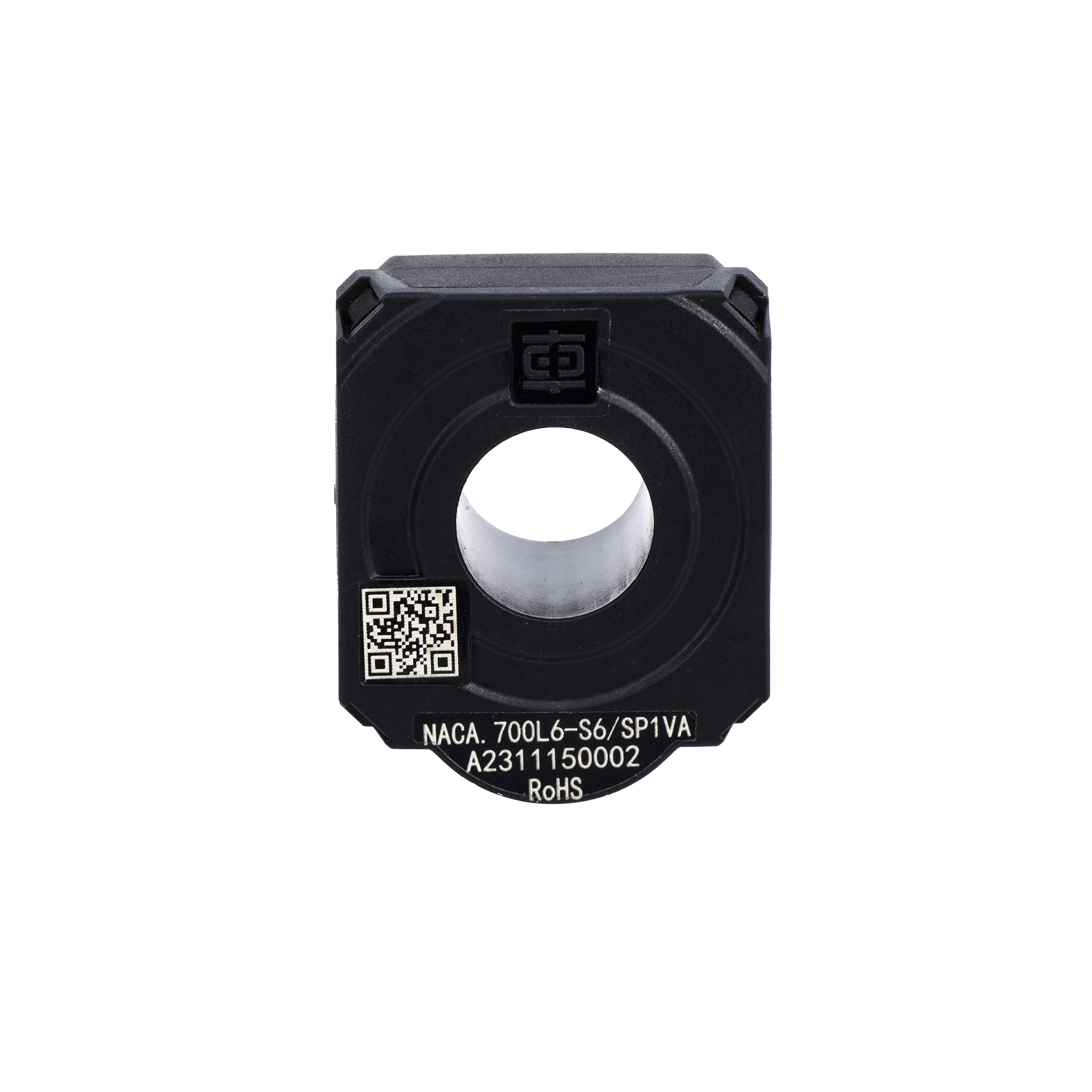

Main Parameters

1. Power Supply: 5 V
2. Rated Current: 300A‑900A
3. Current Measurement Range: ±300A‑±900A
4. Bandwidth: 40 kHz
5. Step‑response Time: 2 μs（Typical）

Key Benefits

1. Open-loop Hall-effect technology, galvanic isolation between primary and secondary for high safety & reliability
2. Broad measurement range: DC, AC and pulsed current
3. Voltage output, easy post-stage sampling circuit design
4. Compact footprint, ideal for cabinet-mount installation
5. Excellent  insulating  performance

Typical Applications

1. Electrical Power Steering
2. Starter Generators
3. Converters
4. Motor drive application
