构网型储能变流器（PCS）是中车青岛四方车辆研究所有限公司依托轨道交通电力电子核心技术积淀，自主研发的具备主动电压支撑能力的新型储能变流装备。该产品采用电压源型构网控制架构，可独立构建稳定的电压与频率参考，实现并网/离网工况无缝切换与系统黑启动，突破传统并网型PCS对大电网的依赖瓶颈。产品可深度适配风光储一体化电站、虚拟电厂、独立微电网、工商业削峰填谷、电网侧调频调压等多场景应用，有效解决高比例新能源并网带来的电网惯量不足、电压/率稳定裕度低、供电可靠性差等行业痛点，支撑新型电力系统构建，推动储能产业向高可靠、高智能、高适配方向升级。

  Grid-forming Energy Storage Converter (PCS) is a new-generation energy storage conversion equipment independently developed by CRRC Qingdao Sifang Rolling Stock Research Institute Co., Ltd. leveraging its core technical expertise in rail transit power electronics, featuring active voltage support capability.

  Adopting a voltage-source grid-forming control architecture, the product can independently establish stable voltage and frequency references, realize seamless switching between grid-connected and off-grid operating modes as well as system black start, and break through the bottleneck of traditional grid-following PCS relying on the bulk power grid.

  The product is deeply adaptable to a wide range of application scenarios, including wind-solar-storage integrated power stations, virtual power plants (VPPs), standalone microgrids, industrial and commercial peak shaving, and grid-side frequency and voltage regulation. It effectively addresses industry pain points caused by high-penetration new energy grid integration, such as insufficient grid inertia, low voltage/frequency stability margin, and poor power supply reliability, supporting the construction of the new power system and driving the upgrading of the energy storage industry towards high reliability, high intelligence, and high adaptability.

  关键技术Key Technology/中英文

  1.主动支撑与惯量/一次调频协同控制技术

  Active Support and Inertia/ Primary Frequency Regulation Cooperative Control Technology

  2.并网/离网切换与黑启动技术

  Grid-Connected / Off-Grid Switching and Black Start Technology

  3.多机并联高精度均流与集群协同组网控制技术

  High-precision Multi-unit Parallel Current Sharing and Cluster Cooperative Networking Control Technology

  4.宽范围电网适应性与低/高电压穿越、频率扰动耐受技术

  Wide-range Grid Adaptability and Low/High Voltage Ride-through, Frequency Disturbance Tolerance Technology

  5.高效液冷/风冷一体化热管理与高可靠性防护设计技术

  High-efficiency Liquid-cooled/Air-cooled Integrated Thermal Management and High Reliability Protection Design Technology

  6.储能系统多场景智能调度与源网荷储协同控制技术

  Multi-scenario Intelligent Scheduling of Energy Storage System and Source-grid-load-storage Cooperative Control Technology

  7.电磁兼容（EMC）设计与复杂工况抗干扰技术

  Electromagnetic Compatibility (EMC) Design and Complex Condition Anti-interference Technology

  8.双向变流高效率能量转换与损耗优化控制技术

  Bidirectional Converter High-efficiency Energy Conversion and Loss Optimization Control Technology

  产品特点Product Characteristics

  1.强构网能力

  Strong grid-forming capability

  2. 无缝切换

  Seamless switching

  3. 高效液冷

  High-efficiency liquid cooling

  4. 高可靠高防护

  High reliability and protection

  5.高功率密度

  High power density

  6.全场景适配

  Full-scenario adaptation

  应用情况Application Situation

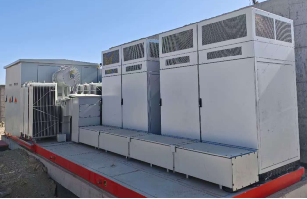

  1.2025年，产品应用于中车德令哈100万千瓦源网荷储200MW/800MWh构网型储能项目。

  In 2025, the product was applied to the CRRC Delingha 1,000,000-kilowatt Source-Grid-Load-Storage 200MW/800MWh grid-forming energy storage project.
