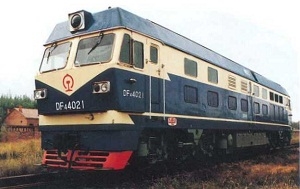

DF4C Diesel Electric Locomotive

From: 2016-05-04
Product Name: DF4C Diesel Electric Locomotive
Product Description:

DF4C diesel electric locomotive is a series product developed from DF4B diesel electric locomotive. The nominal power of the locomotive is 2165kW. It can be used as a power unit for passenger and freight traction on main lines. This locomotive is equipped with three-phase AC-DC transmission. Some new components such as traction alternator TQFR-3000B, traction motor ZQDR-410C, 16V240ZJC diesel engine and VTC254-13 trubocharger have been adopted in it. Its car body, running parts and braking system are the same as those of DF4B diesel electric locomotive. The locomotive is equipped with rheostatic braking system.
Achievements from DF4B diesel electric locomotive and components with advanced level are adopted for this DF4C locomotive. Therefore the operating performance, economy, reliability and durability have been improved. DF4C diesel electric locomotives are divided into two kinds, freight locomotive and passenger locomotive.

Performance Parameters:

Application      freight transport on main lines
Track gauge    1435mm
Vehicle gauge    GB146.1-83(vehicle limit-1A, 1B)
Transmission     AC-DC electric transmission
Axle arrangement  Co-Co
Wheel diameter  105
Axle load         23±3%t
Total weight      138±3%t
Min. negotiable curve radius   145m
Max. speed                  100km/h
Continuous speed             23.7km/h
Starting traction force           440kN
Continuous force              312kN
Diesel engine      16V240ZJB
Max. service power for locomotive  2650kW
Main alternator       TQFR-3000B
Silicon rectifier      GTF4800/770
Traction motor       ZQDR-410C
Type of coupler   TB1595-85 bottom operation coupler
Bogie wheel base  1800×2mm
Overall dimension (L×W×H)  21100×3309×4755mm

Characteristic Curve:

Developing Institute: 中国北车集团大连机车车辆有限公司
