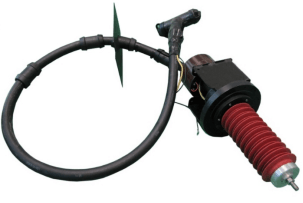

The high-voltage cable assembly is a high-voltage electrical product used to realize the electrical connection of roof high voltage circuit. It mainly consists of high-voltage cables and their supporting cable accessories. Common cable accessories for locomotives include T-shaped connector, outdoor terminal and indoor terminal. In addition to the above cable accessories, EMU also includes the L-shaped connector.
Nearly 8000 high-voltage cable assemblies produced by CED have been installed on power centralized EMUs, HXD2 and HXD3 series electric locomotives. The products are mature and reliable with strong technical strength and rich operation and maintenance experience.
Main products: GYDL6 series and GYDL4 series
1.Electric field uniformity technology
2.Matching technology of interference, interface pressure and insulation performance
3.Material selection and matching technology
4.Three-layer injection molding technology
| Technical parameters |
Locomotive products |
EMU products |
| Nominal voltage |
25 kV |
25 kV |
| Voltage fluctuation range |
17.5 kV~31 kV |
17.5 kV~31 kV |
| Rated frequency |
50 Hz |
50 Hz |
| Power frequency withstand voltage |
124 kV,5 min |
85 kV,1 min |
| Impulse withstand voltage |
250 kV,±10times |
185 kV,±10times |
| Partial discharge |
＜5pC at 48 kV |
＜10pC at 45 kV |
