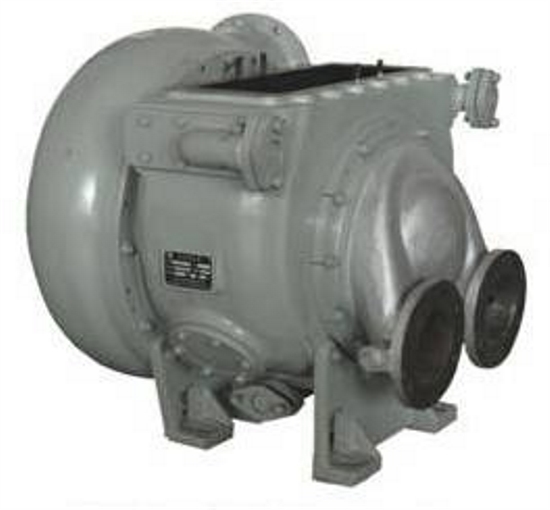

Turbo cargador ZN270-LSA
FORM:
23/03/2017
Browse number：
|
|
|
| Máxima revolución | 31,000 r/min |
| Máxima relación de presión | 3.8 |
| Flujo aire | 1.9 ～ 2.3 kg/s |
| Máxima eficiencia total | 63% |
| Temperatura máxima de entrada de turbina | 650 ℃ |
| Para potencia | 700 ～ 1,200 kW |
| Dimensiones(Longitud×ancho×altura) | 875×700×663 mm |
| Peso | 320 kg |
| Para modelo | GK1，DF7C，DF7G |
