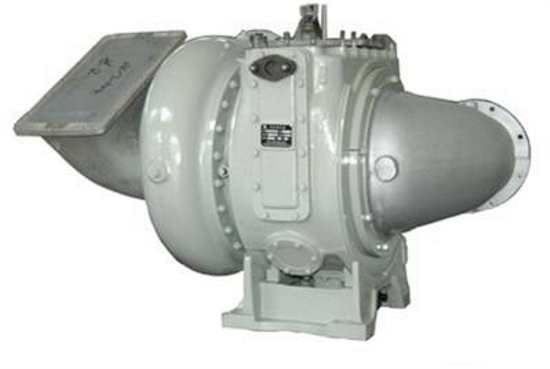

Turbo cargador ZN310-LSA4-1
FORM:
23/03/2017
Browse number：
|
|
|
| Máxima revolución | 27,500 r/min |
| Máxima relación de presión | 4.0 |
| Máximo caudal | 4.9 kg/s |
| Máxima eficiencia total | 64% |
| Temperatura máxima de entrada de turbina | 650 ℃ |
| Para potencia | 800 ～ 2,224 kW |
| Dimensiones(Longitud×ancho×altura) | 1,194×650×780 mm |
| Peso | 375 kg |
| Para modelo | DF8，DF8B，DF11 |
