CDD6A1 DIESEL LOCOMOTIVE

Source: DateTime:2019-11-03

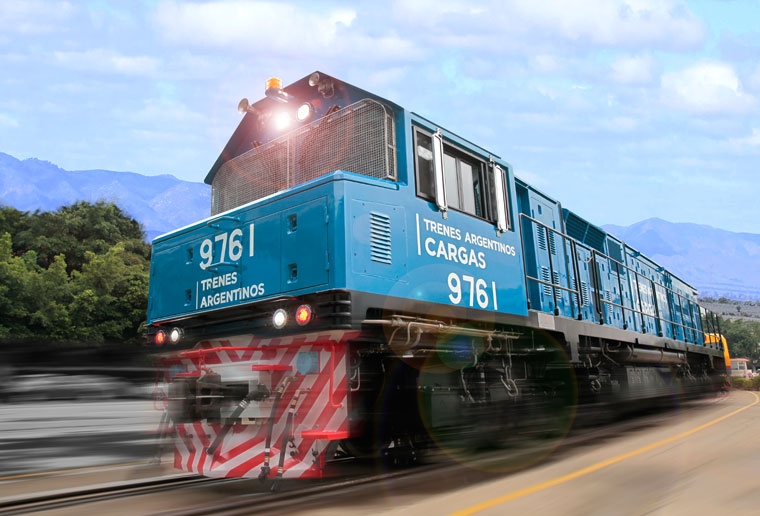

CDD6A1 locomotive exported to Argentina is a meter-gauge AC-DC diesel-electric locomotive for main line freight transportation. With the structure of single cab and external corridor, the locomotive is equipped with MTU16V4000R43 diesel engine, with service power of 2200kW and Max. runnig speed of 80km/h. The locomotive has microcomputer network control system, CCBⅡelectro-pneumatic brake system, multiple-unit device and dynamic brake device.

MAIN TECHNICAL PARAMETERS

Application Main line freight ransportation Service Power 2200kW
Track Gauge 1000mm Max. Speed 80km/h
Axle Arrangement Co-Co Continuous Speed 22.5km/h
Wheel Diameter 1016 mm Starting Tractive Force 295kN
Axle Load 17t Continuous Tractive Force 295kN
Service Weight 102(1±3%)t Appearance Dimension(mm) 18720×3070×4020
