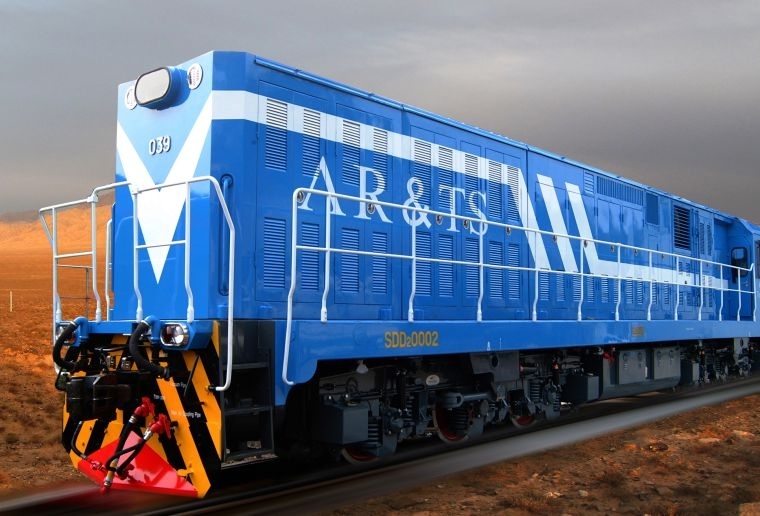

| It is a narrow-gauge diesel-electric AC-DC transmission locomotive used for mainline freight and passenger purpose, which has been exported to South Africa. The locomotive adopts single cab and external corridor structure. This locomotive is installed with CAT3516B diesel engine, and its service power is 1620kW and Max. operating speed is 120km/h. The locomotive is equipped with microcomputer control system, multi-unit device and dynamic brake device. |
MAIN TECHNICAL PARAMETERS
| Application |
Mainline passenger and
freight service |
Service Power |
1620kW |
| Track Gauge |
1065mm |
Max. Speed |
120km/h |
| Axle Arrangement |
Co-Co |
Continuous Speed |
18.7km/h |
| Wheel Diameter |
1650mm |
Starting Tractive Force |
345kN |
| Axle Load |
≤18.5t |
Continuous Tractive Force |
223.6kN |
| Service Weight |
≤111t |
Appearance Dimension(mm) |
18400×2900×3950 |
