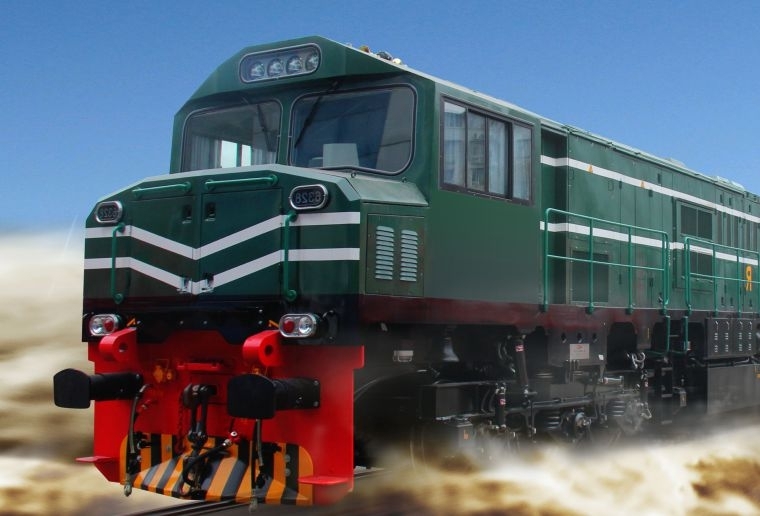

| It is a broad-gauge diesel-electric AC-DC transmission locomotive used for mainline passenger and freight purpose, which has been exported to Pakistan. The locomotive adopts single cab and external corridor structure. This locomotive is installed with CAT C175 diesel engine, and its service power is 2800kW and Max. operating speed is 140km/h. The locomotive is equipped with main/auxiliary coaxial generator, microcomputer control system, multi-unit device and dynamic brake device. |
MAIN TECHNICAL PARAMETERS
| Application |
Mainline passenger and
freight service |
Service Power |
2800 kW |
| Track Gauge |
1676mm |
Max. Speed |
140 km/h |
| Axle Arrangement |
Co-Co |
Continuous Speed |
26.8km/h |
| Wheel Diameter |
1092mm |
Starting Tractive Force |
401kN |
| Axle Load |
22.5t |
Continuous Tractive Force |
257kN |
| Service Weight |
135t |
|
|
