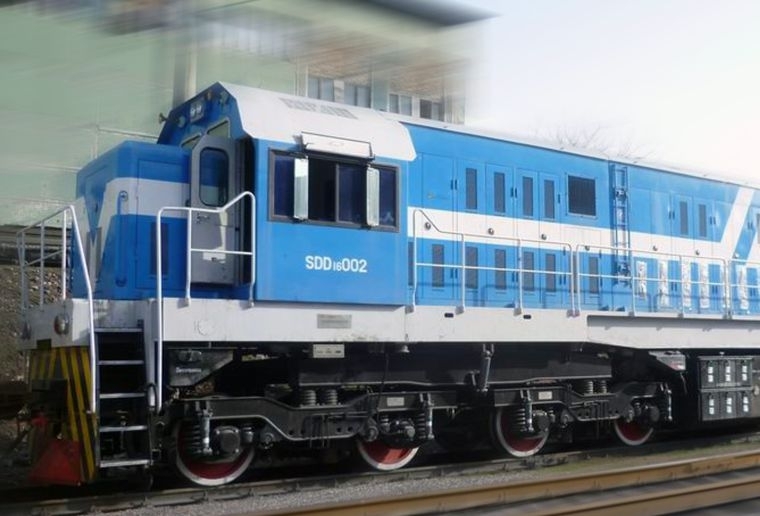

SDD19 DIESEL LOCOMOTIVE

Source: DateTime:2019-11-03

It is a broad-gauge 8-axle diesel-electric AC-DC transmission shunting locomotive, which has been exported to Uzbekistan. The locomotive adopts single cab and external corridor structure. This locomotive is installed with 6280ZJ diesel engine, and its service power is 1500kW and Max. operating speed is 100km/h. The locomotive is equipped with microcomputer control system.

MAIN TECHNICAL PARAMETERS

Application Shunting & transfer service Service Power 1500kW
Track Gauge 1520 mm Max. Speed 100km/h
Axle Arrangement Co-Co Continuous Speed 8.7km/h
Wheel Diameter 1050 mm Starting Tractive Force 580kN
Axle Load 22.5t Continuous Tractive Force 427kN
Service Weight 180t Appearance Dimension(mm) 22250×3256×4850
