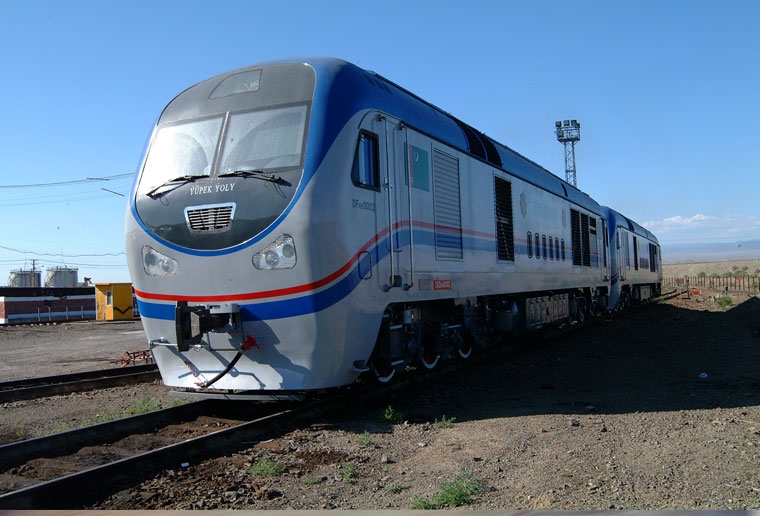

| It is a broad-gauge diesel-electric AC-DC transmission locomotive used for mainline passenger purpose, which has been exported to Turkmenistan. The locomotive adopts double cabs and internal corridor structure. This locomotive is installed with 16V280ZJA diesel engine, and its service power is 3680kW and Max. operating speed is 120km/h. The locomotive is equipped with microcomputer control system, speed monitoring system for traffic safety and dynamic brake device with function of full-power & self-load. |
MAIN TECHNICAL PARAMETERS
| Application |
Mainline passenger service |
Service Power |
3680kW |
| Track Gauge |
1520 mm |
Max. Speed |
120km/h |
| Axle Arrangement |
Co-Co |
Continuous Speed |
35.5km/h |
| Wheel Diameter |
1050 mm |
Starting Tractive Force |
442kN |
| Axle Load |
23t |
Continuous Tractive Force |
292kN |
| Service Weight |
138t |
Appearance Dimension(mm) |
22480×3337×4736 |
