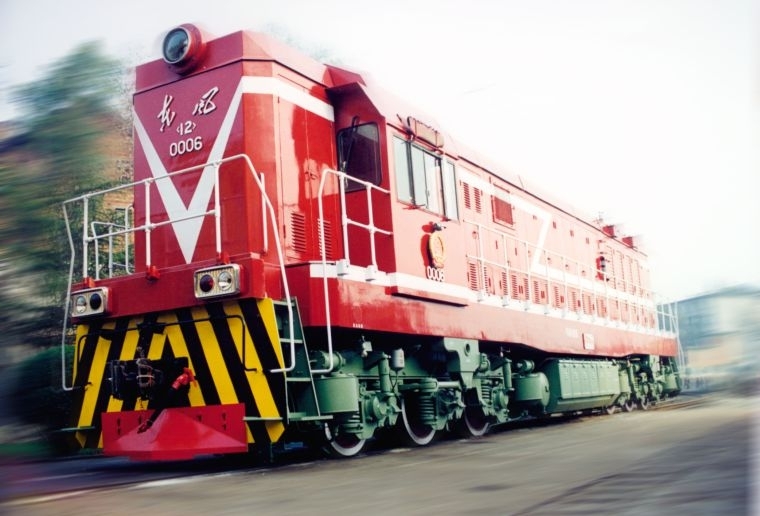

DF12 DIESEL LOCOMOTIVE

Source: DateTime:2019-11-01

It is a standard-gauge, diesel-electric AC-DC transmission locomotive used for shunting and mainline freight service, which has been exported to Libya. The locomotive adopts single cab and external corridor structure. This locomotive is installed with 16V240ZJB diesel engine, and its service power is 2430kW and Max. operating speed is 100km/h.  This shunting locomotive with high-power has advantages of excellent performance, good suitability, high reliability, easy operation and maintenance. It is an ideal shunting locomotive used for railway heavy-haul service.

MAIN TECHNICAL PARAMETERS

Application Shunting & mainline freight service Service Power 2430kW
Track Gauge 1435mm Max. Speed 100km/h
Axle Arrangement Co-Co Continuous Speed 20.5km/h
Wheel Diameter 1050 mm Starting Tractive Force 437kN
Axle Load 23t/25t Continuous Tractive Force 317.7kN
Service Weight 138t/150t Appearance Dimension(mm) 19900×3376×4722
