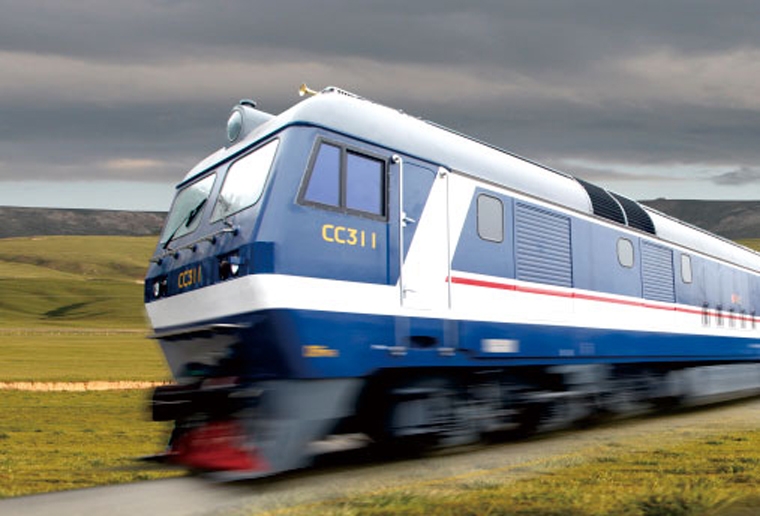

DF8B DIESEL LOCOMOTIVE

Source: DateTime:2019-11-01

It is a standard-gauge diesel-electric AC-DC transmission locomotive used for mainline freight purpose, which has been exported to Turkmenistan, Gabon etc.. The locomotive adopts double cabs and internal corridor structure. This locomotive is installed with 16V280ZJA diesel engine, and its service power is 3680kW and Max. operating speed is 100km/h. DF8B can meet the requirement for high-speed & heavy-haul freight purpose on mainline. Its axle load could be changed to meet the requirements on different lines.

MAIN TECHNICAL PARAMETERS

Application Mainline freight service Service Power 3680kW
Track Gauge 1435mm Max. Speed 100km/h
Axle Arrangement Co-Co Continuous Speed 31.2km/h
Wheel Diameter 1050mm Starting Tractive Force 480kN(Axle load: 25t)
Axle Load 23t/25t Continuous Tractive Force 340kN
Service Weight 138t/150t Appearance Dimension(mm) 22000×3304×4736
