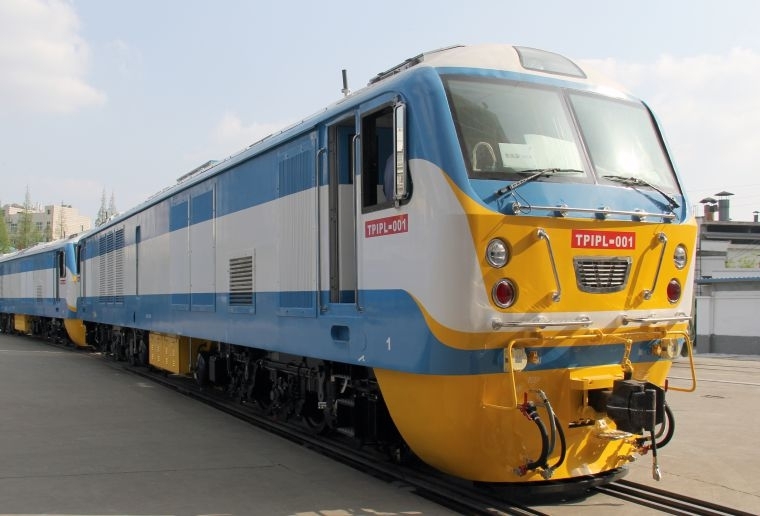

SDA4 AC DRIVE DIESEL LOCOMOTIVE

Source: DateTime:2019-10-31



 It is a light, narrow-gauge, AC drive and large power diesel locomotive whose service power,axle load and gauge are separately 1500~2400kW, 13.5~16t and 1000~1067mm.  Starting adhesion factor of locomotive can reach 0.36, continuous adhesion factor can be over 0.36 and Max. speed is 120km/h. Its emission complies with EU III, and it is widely applicable to narrow-gauge railway transportation via setting up one or several product platforms.

MAIN TECHNICAL PARAMETERS

Application Mainline transportation Service Power 2060kW
Track Gauge 1000mm Max. Speed 120km/h
Axle Arrangement Co-Co Continuous Speed 19.1km/h
Wheel Diameter 1016mm Starting Tractive Force 380kN
Axle Load ≤16t Continuous Tractive Force 305kN
Service Weight ≯96t Appearance Dimension(mm) 20700×2800×3950
