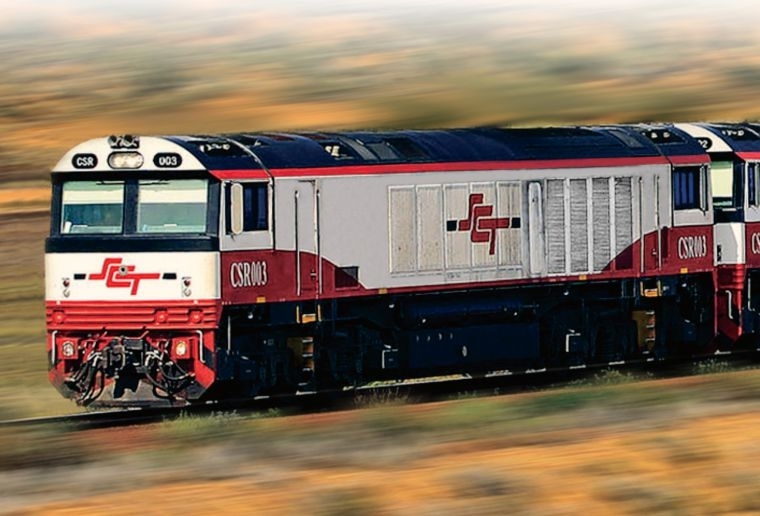

SDA1 AC DRIVE DIESEL LOCOMOTIVE

Source: DateTime:2019-10-31

It is a standard-gauge diesel-electric AC-AC transmission locomotive used for mainline freight purpose, which has been exported to Australia. The locomotive adopts double cabs and internal corridor structure. This locomotive is installed with 20V4000R43L diesel engine from Germany, and its service power is 3000kW and Max. operating speed is 120km/h. SDA1 with proprietary intellectual property right is the first AC-AC diesel-electric transmission locomotive in China which had been supplied to developed country. It complies with locomotive technical standard of Europe and America, reaches EUⅢ emission standard and represents the world advanced technology.

MAIN TECHNICAL PARAMETERS

Application Mainline freight service Service Power 3000kW
Track Gauge 1435mm Max. Speed 120km/h
Axle Arrangement Co-Co Continuous Speed 16km/h
Wheel Diameter 1067mm Starting Tractive Force 600kN
Axle Load ≤22.3t Continuous Tractive Force 520kN
Service Weight ≤134t Appearance Dimension 22000×2900×4240
