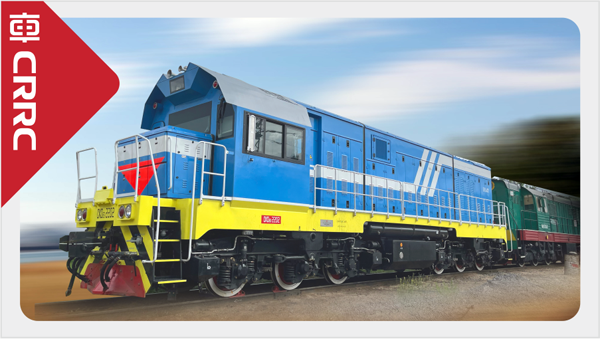

| CKD6E3000 diesel locomotive is four-axle electric transmission shunting locomotive for wide gauge railway. The locomotive adopts a single driver's cab and outside corridor structure, equipped with a 6240 diesel engine, with a service power of 1000KW and a maximum running speed of 80km/h. According to the operation characteristics of industrial and mining enterprises, the safety design, maintainability design and low-speed performance design of locomotive are strengthened. |
|
Main Technical Parameters |
| Application | Shunting & transfer service | Track Gauge | 1520 mm |
| Axle Arrangement | B0-B0 | Wheel Diameter | 1050 mm |
| Axle Load | 23t (25t) | Locomotive Service Weight | 92t (100t) |
| Max. Service Output of Diesel Engine | 1000 kW | Min. Negotiable Curve Radius | 70 m |
| Max. Running Speed | 80 km/h | Continuous Speed | 11.4 km/h |
| Max. Starting Tractive Effort | 294.4 kN (23t) 320 kN (25t) |
Continuous Tractive Effort | 222 kN |
| Fuel Capacity | 4000 L | Oil Capacity | 800 kg |
| Sand Capacity | 400 kg | Overall Dimensions (L×W×H) | 17330mm×3256mm×4500mm |
