Rolling Stock details

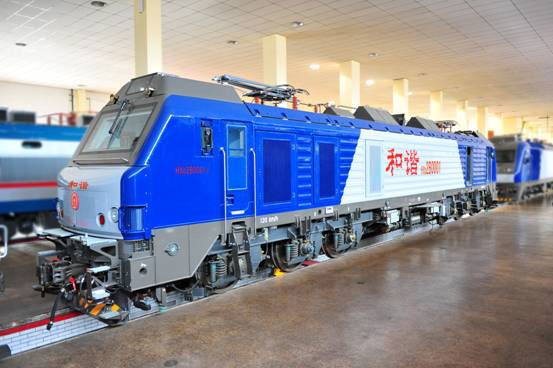

Type HXD2B Electric Locomotive

FORM: 01/03/2016 Browse number:

Line voltage 25kV, 50Hz
Wheel arrangement 2(Bo-Bo)
Axle load 25±31 % t
Rated power 9,600 kW
Design speed 120 km/h
Starting effort 584 kN
Min. curve negotiation radius 125 m
Length over coupler centers 22,960 mm
Application Freight on main line
