Rolling Stock details

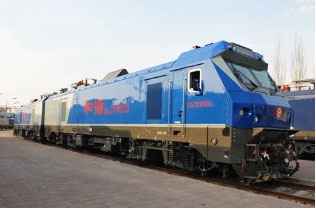

Type HXD2F Electric Locomotive

FORM: 01/03/2016 Browse number:

Line voltage 25kV, 50Hz
Wheel arrangement 2(B0-B0)
Axle load 30±13 % t
Rated power 9,600 kW
Design speed 100 km/h
Starting effort 910 kN
Min. curve negotiation radius 125 m
Length over coupler centers 2 x 19,075 mm
Application Freight on main line
