Rolling Stock details

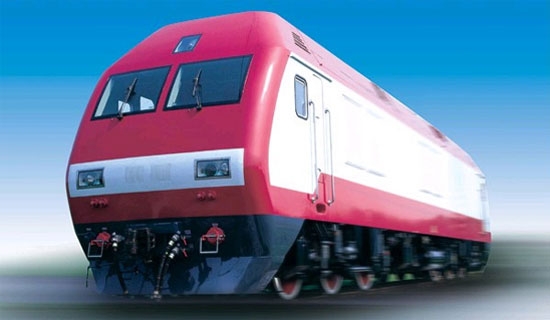

Type SS9 Passenger Electric Locomotive

FORM: 01/03/2016 Browse number:

Line voltage 25kV, 50Hz
Wheel arrangement Co-Co
Axle load 21±31 % t
Continuous Power 4,800 kW
Max. Speed 170 km/h
Starting effort 286 kN
Continuous effort 169 kN
Continuous speed 99 km/h
Length over coupler centers 22,216mm
Application Passenger on main line
