Rolling Stock details

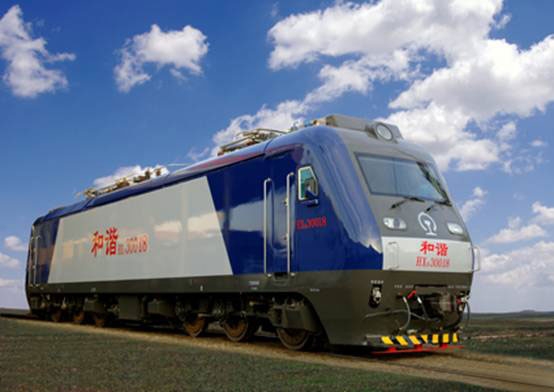

Type HXD3 Electric Locomotive

FORM: 01/03/2016 Browse number:

Line voltage 25kV, 50Hz
Wheel arrangement Co-Co
Axle load 23±31 % t
Rated power 7,200 kW
Design speed 120 km/h
Starting effort 570 kN
Min. curve negotiation radius 125 m
Length over coupler centers 20,846mm
Application Freight on main line
