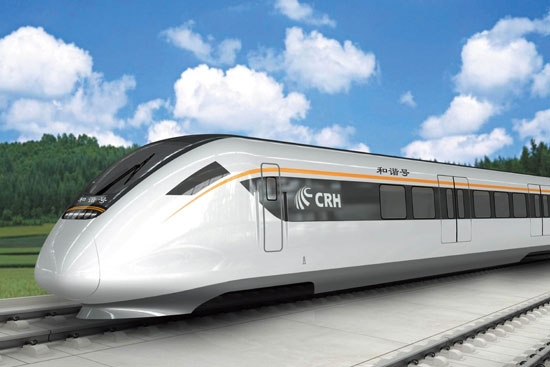

Rolling Stock details
![]()
![]()
| Configuration | 4M+4T |
| Line voltage | 25kV / 50Hz |
| Rated output per motor | 322 kW |
| Running speed | 160 km/h |
| Axle load | 16.5t |

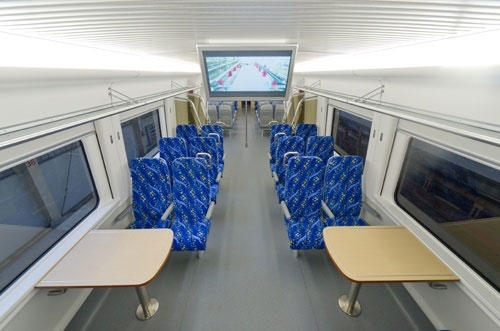

| Seating capacity per train | 1,488 |
| Length per car | |
| Head car | 25,450 mm |
| Middle car | 24,500 mm |
| Width | 3,300 mm |
| Height | 3,860 mm |
| Floor height | 1,260 mm |
| Wheel base | 2,500 mm |
