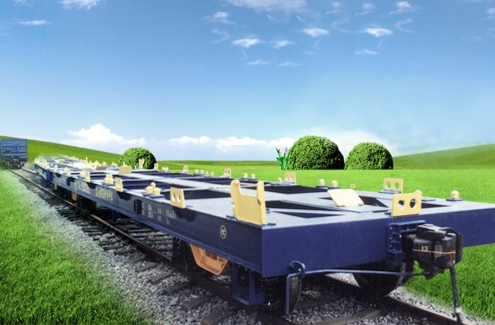

Summary: This flat car specially utilized for container transportation is suitable for operating on China standard gauge railway. It is mainly comprised of underfame, locking device, bogie, brake equipment, coupler and draft gear, etc. The underframe is of all steel welded structure, and the car adopts fixed and turnover lockers, ZK3 bogie, air brake system with120 type control valve, rotary chain type hand brake, 13 type bottom operation coupler and MT-3 type draft gear.
Main technical parameters：
| Loading capacity（t） |
50 |
| Tare weight（t） |
≤20 |
| Operating speed (km/h) |
120 |
| Min. radius of curvature negotiable (m) |
145 |
| Container specification: One 1AAA or 1AA or 1A or 1AX or 45ft Two 1CC or 1C or 1CX Five TB2114-90 10t container |
|
