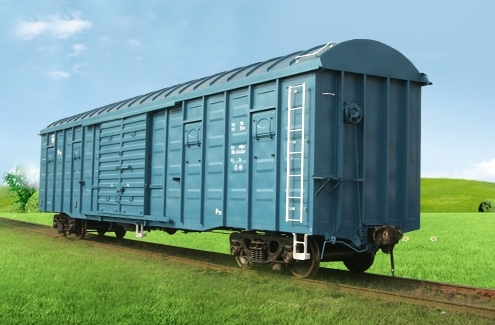

Summary:This box car is used to transport the goods which shall be kept away from rain and snow, as well as case goods and bag cargoes. And it is suitable for operating on China standard gauge railway. The car is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure, and the car adopts ZK5 bogie or ZK6 bogie, air brake system with120 type control valve, NSW type hand brake, 17 type coupler and MT-2 type draft gear.
Main technical parameters：
| Loading capacity（t） |
70 |
| Tare weight（t） |
≤24.6 |
| Volume（m3） |
145 |
| Operating speed (km/h) |
120 |
| Min. radius of curvature negotiable (m) |
145 |
