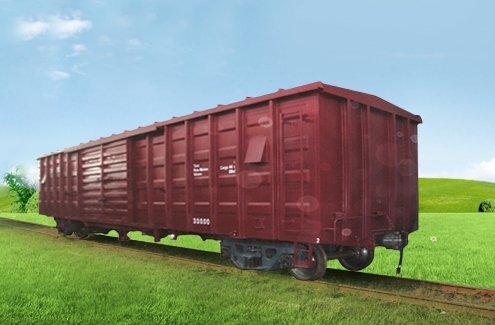

Box Car for Angola

Source: DateTime: 2013-12-22

Summary: This box car is used to transport the goods which shall be kept away from rain and snow, as well as case goods and bag cargoes. And it is suitable for operating on Angola railway with 1067mm gauge. The car is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel integral bearing welded structure, and the car adopts low track force bogie with 1067mm gauge, ratchet wheel and pawl type hand brake, 13 type top operation coupler and ST type draft gear.

Main technical parameters:

Loading capacity(t)

44

Tare weight(t)

20

Volume (m3

89

Operating speed (km/h)

100

Min. radius of curvature negotiable (m)

80
