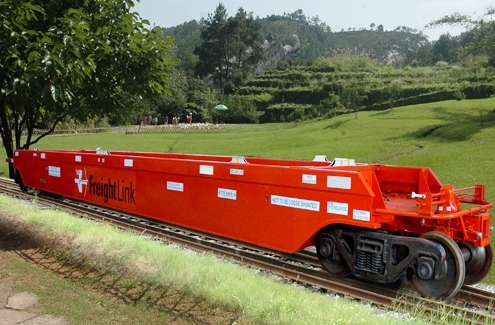

Summary: This flat car specially utilized for double-deck container transportation is suitable for operating on Australia railway with 1435mm gauge, control car and slave car as a pair connected by drawbar. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure, and the car adopts ride control type bogie, air brake system with Knorr WF5 type control valve, TMX type brake system, FSW type hand brake, E/F type coupler and MT-2 type draft gear.
Main technical parameters：
| Loading capacity/one car（t） |
64 |
| Tare weight/ two car（t） |
≤43 |
| Max. operating speed (km/h) |
115 |
| Min. radius of curvature negotiable (m) |
70 |
| Container specification: International standard container 20′, 40′, and R series standard container conformed to Australia standard 20′RC, 24′RE, 40′RA, 45′RG, 48′RH, 53′RF, and 53′ shall be put on the top layer. |
|
