TQFR3000B Main Generator

Product Name

TQFR3000B Main Generator

volume length*width*heightcm

1179.5*1700*1620

weight Kg

5100

Rated output power

2570kVA

Rated working voltage

386/606V

Rated Current

3840/2444A

Rated rotating speed

1000r/min

Maximum rotating speed



Rated torque



Starting torque is no less than



Motor insulation grade

H

TQFR3000B generator was the earliest main generator manufactured by our company and was applied to medium-speed diesel engine to supply power for traction motor for the locomotive. It’s mainly used by the previous DF and DF4 diesel locomotive. The series generator has been exported to Uzbekistan Kazakhstan and North Korea etc.

Technical Feature

1. Motor structure: being three-phase salient pole synchronous generator with horizontal single bearing structure, E32626QTY single-row cylindrical roller bearing is installed at shaft extension end with shat extension 1:10 taper to help transmission and the other end is connected to diesel engine by flexible coupling.

2. Ventilation method: It adopts protection radial self-ventilation with cooling air entering from end cover air inlet, blown by scoop-type fan installed at the two ends of rotor and discharged from two air outlets below and above the frame.

3. Excitation: brush excitation with excitation through brush carrier and slip ring.

Technical Advantage

1. To supply traction power for diesel locomotive with medium-speed diesel engine

2. Large power

3. High voltage

4. Wide voltage ratio

5. High insulation class

6. Stable performance

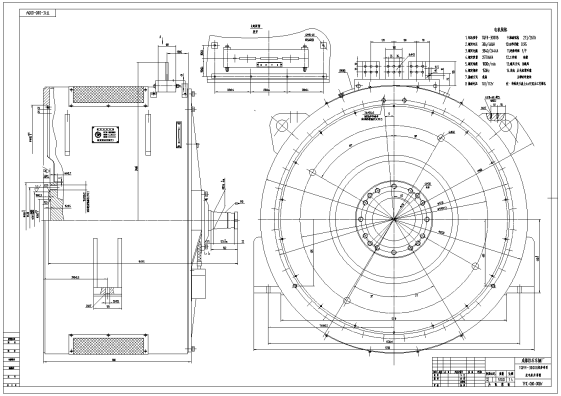

CAD Drawing
