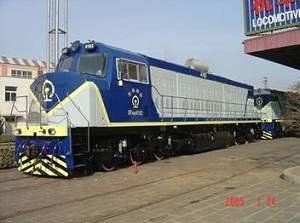

DF4DD Shunting Diesel Locomotive

From: 2016-05-04
Product Name: DF4DD Shunting Diesel Locomotive
Product Description:

Performance Parameters: Model  DF4DD
Application  heavy shunting and transfer
Track gauge   1435mm
Vehicle gauge    GB146.1-83(vehicle liimit-1A, 1B)
Transmission    AC-DC electric transmission
Axle arrangement    Co-Co
Wheel diameter     1050mm
Axle load   23±3%t(或25±3%t)
Total weight   138±3%t(或150±3%t)
Min. negotiable curve radius   100m
Max. speed    80km/h
Continuous speed    23.4km/h
Starting traction force    504kN
Continuous traction force    358kN
Diesel engine    16V240ZJD
Max. service power for locomotive    2940kW
Main alternator    TQFR-3000E
Silicon rectifier   GTF5100/1250 -A
Traction motor    ZD109Z
Type of coupler   13# coupler, upper operation
Bogie wheel base    1800×2mm
Overall dimension(L×W×H)   21100×3372×4790mm
