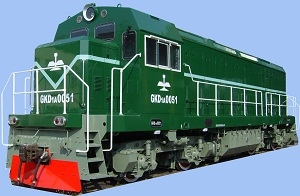

GKD1A Diesdel Elecgtric Locomotive
From:
2016-05-04
| Product Name： |
GKD1A Diesdel Elecgtric Locomotive |
| Product Description： |
|
| Performance Parameters： |
Model: GKD1A
Application: Shunting and transfer
Track gauge: 1435mm
Vehiclde gauge: GB146.1-83 (vehicle limit=1A, 1B)
Transmission: AC-DC electric transmission
Axle arrangement: B0-B0
Wheel diameter: 1050mm
Axle load: 23±3 % t(25±3 % t)
Total weight: 92±3 % t（100±3 % t）
Min. negotiable curve radius: 70m
Max.speed: 80km/h
Continuous speed: 12.6km/h
Starting traction force: 310 kN
Continuous tracktion force: 212kN
Diesel engine model: 6240ZJD
Max. service power for locomotive: 1100 kW
Main alternator: TQFR―1000
Traction motor: ZQDR―410E or ZQDR―410Z1
Battery: valve control, free of maintenance
Bogie wheel base: 2800mm
Overall dimension (L×W×H): 16700×3200×4655mm |
