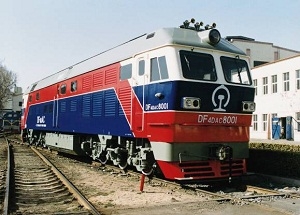

DF4DJ AC Drive Diesel Locomotive

From: 2016-05-04
Product Name: DF4DJ AC Drive Diesel Locomotive
Product Description:

Successfully developing by CNR Dalian Locomotive & Rolling Stock Co., Ltd. and Siemens, the latest AC transmission technologies in the world advanced technologies are adopted on this locomotive. Its starting traction force is up to 555 kN and the Max. speed is 145km/h. It fills up research blanks of high power main line AC-DC-AC diesel engine in China.


Performance Parameters: Transmission    AC/AC
Axle arrangement    Co-Co
Axle load       23±31% t
Max. service power for locomotive        2940 kW
Max. speed       145 km/h
Min. negotiable curve radius     145 m
Length over coupler centers:   21100 mm
Diesel engine     16V240ZJD
Application      passenger and freight transport on main lines

Developing Institute: 中国北车集团大连机车车辆有限公司
